High Shear Emulsification Tank

Model: JTRGR

Brand: JHENTEN

Detail Description

The JTRRG Emulsification Tank be designed, manufactured and inspected in accordance with the pressure vessel standard(GB150-2011) and the steel welded atmospheric pressure vessel standard(NB/T 47003.1-2009) , strictly meet to GMP certificate requirements.

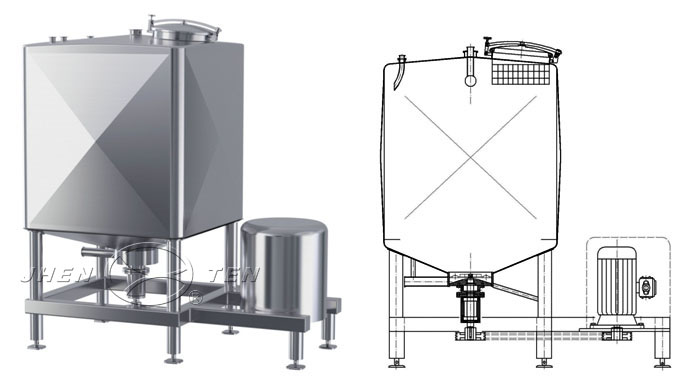

Square High Shear Emulsification Tank use square single layer stainless steel,and the inner wall of the tank body is made of circular transition, , no dead corner, easy to clean;and the bottom with mechanical emulsification.
Tank body and bottom head of Square High Shear Emulsification Tank can be equiped with an insulation layer according to the customers' requirements.

Tank optional configuration

Square High Shear Emulsification Tank optional configuration: sterile air filter, thermometer (digital display type or dial), sight glasses, sanitary manhole, in-outlet, CIP universal rotating cleaning ball, sterile sampling valve (stainless steel tank bottom), the liquid level meter and liquid level self-control system (bearing module, non-contact ultrasonic, static pressure transmitting device), etc., or configured according to customers’ requirements.

Application:
? Suitable for food (milk), beverage,biotechnology, pharmaceutical, fine chemicals, pigment etc .mixed liquid and mixture in the tank is full and rapid mixing, dispersion, emulsification, homogenization.

Feature
? There are 600L～5000L varietys of specifications, it can be designed, customized according to the customers' requirements.
? Connector use fast installation chuck(clamp), inner tank use SS304 or SS316L, the inner surface mirror polishing Ra≤0.28μm～0.6μm, outer surface can be polishing, wiredrawing ,sandblasting according to customer's requirement.
? Square High Shear Emulsification Tank use mechanical emulsification at bottom, adopt claw type occlusion, double suck material structure; high speed mixing and emulsification, can be suitable for different mixture, mixing, dispersion, emulsification, homogenization.
? Emulsification shaft seal use sanitary mechanical seal, emulsification motor can use planet-cycloid retarder, stepless reducer according to the customers' requirements .

Design Parameter

Designpressure	ATM

Designtemperature	Accordingto the customers' requirements（0℃～160℃）

Material

Innertank	304、316L
Insulationlayer	Rockwool ( keep warm ) or PU ( keep cool )
Feet	304

Surface Finish

Finishtype	Mechanical polishing, electrolyticpolishing, Sand blasting
Polishingprecision	Inner surface Ra≤0.4μm， Outer surface Ra≤0.6μm

Connection

In-outlet

Tri-clamp, flange

Normal Model And MainTechnical Parameters

Parameters	Model		JTRGR—1000	JTRGR—2000	JTRGR—3000	JTRGR—4000
Effectivevolume：L			1000	2000	3000	4000
Barrel		Lengthand width：mm	1100	1300	1450	1600
Barrel		height：mm	800	1200	1400	1500
Emulsification		Motor power：kW	18.5	22	30	37
Emulsification		EmulsificationRPM	1500
The above-mentioned data is thestandard ,for reference only. it can customize according to customer'srequirements.
